Steinmeyer Mechatronik GmbH
Medium-sized companies (<250 employees or <50 million annual turnover)
Target markets
Electronics·Life science·Machinery and Equipment·Mobility
Industries
Machinery & Equipment·Technology
Portfolio
Biotechnologie·Cleanroom·Equipment·High Vacuum (HV)·High Vacuum Equipment Components·Indoor-Positioning Systems·Performance in Nanopositioning·Semiconductor
Certificates
Contact
Fritz-Schreiter-Str. 32
01259 Dresden
01259 Dresden
+49 351 88585-0
Contact Person
Nadine Strudel
+49 351 88585-44
Head of Sales
About this member
We turn ideas into engineering – for over 150 years.
Steinmeyer Mechatronik was founded in 1872 in Dresden by Gustav Heyde as a mathematical-mechanical institute and optical precision workshop. As part of the globally operating Steinmeyer Group, with more than 600 employees worldwide, Steinmeyer Mechatronik develops and manufactures high-precision positioning systems and mechatronic components on a production area of over 3,500 m².
Modular. Custom-engineered. High-precision.
Steinmeyer delivers high-precision positioning systems tailored exactly to specific requirements. Whether adapting existing solutions or developing completely new systems, our close collaboration between engineers and experienced manufacturing teams enables us to act as an extension of our customers’ engineering departments. In addition, we offer a comprehensive range of services, including development, prototyping, and high-volume production.
Products:
- Custom positioning systems
- Multi-axis systems and assemblies
- Cleanroom systems
- Cleanroom & Vacuum XYZ-(R) Stages
- Electronics and software development
- Mechatronic components
- Embedded systems
Technologies:
- Cleanroom systems: up to ISO 4 (higher on request)
- Vacuum: full range from HV to UHV up to 10E-11 mbar
- Beam: UV, DUV, EUV (X-ray, gamma on request)
- Magnetism: magnetic, low-magnetic, magnet-free
- Maintenance-free system architectures
Services:
- Express 3D designs (Rapid CAD Concepts)
- Consulting & system design
- Custom development (development under NDA)
- Technical project management
- Feasibility analyses & concept studies
- Precision component manufacturing & advanced assembly
- Cleanroom assembly
- Custom electronics & plug-and-play solutions
- Long-term & stress testing
- Prototyping, ramp-up, and series production up to 5,000 units/year
Custom Positioning Systems
Steinmeyer provides high-precision customized positioning systems for all degrees of freedom. With our complete team of engineers and experienced manufacturing team, we are equipped to become an extension of our customers engineering department and be a partner. We provide a complete selection of services, including engineering, prototypes and large series production.

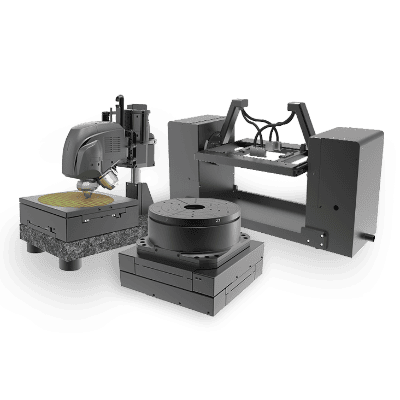

Task-specific systems customized for customer and process needs

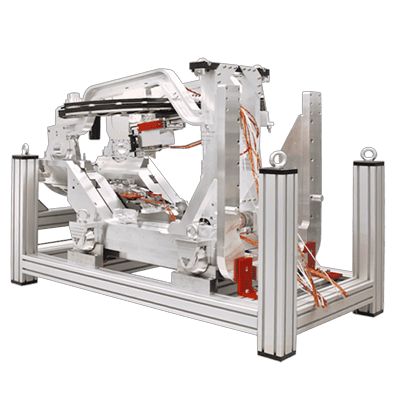

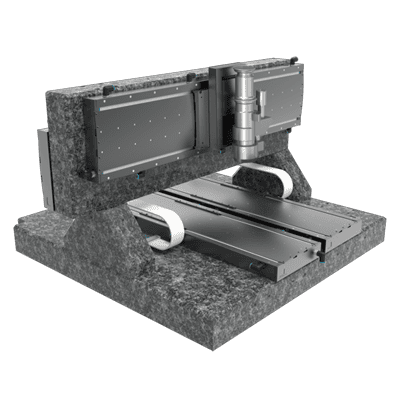

Multi Axes Systems
XYZ-R motions, Travel 5 – 2400 mm, Speed up to 1500 mm/s

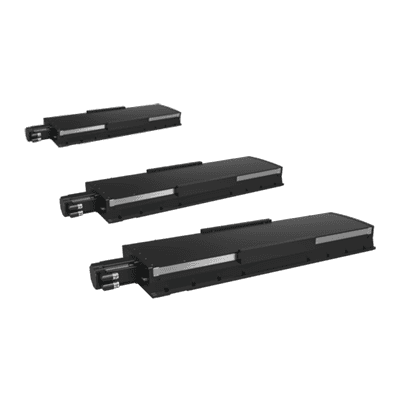

Linear Stages
High-performance linear axes, Travel up to 2000 mm, Rep up to 0.3 µm, Load up to 310 kg, Speed up to 4120 mm/s

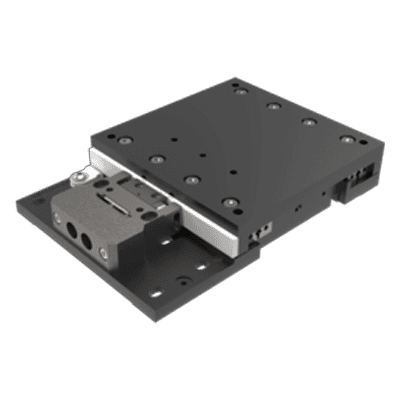

Miniature Stages
Miniature Linear Stages, Travel 10 – 80 mm, Rep up to 0.2 µm, Load up to 9 kg, Speed up to 100 mm/s

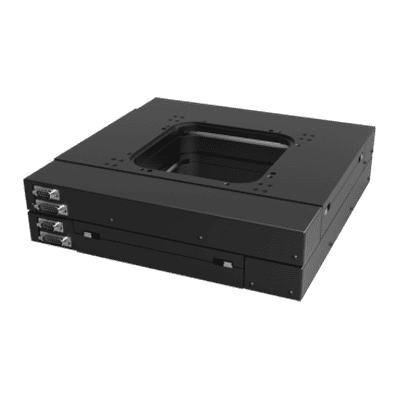

XY Stages
Precision XY Stages, Travel up to 450 x 450 mm, Rep up to 0.2 µm, Load up to 30 kg, Speed up to 1400 mm/s

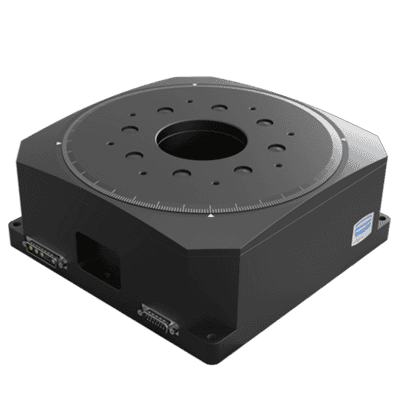

Rotary Stages
Rotary positioner, travel up to n x 360° (unlimited), rep up to 0.0001°, load up to 15 kg, speed up to 1500°/s

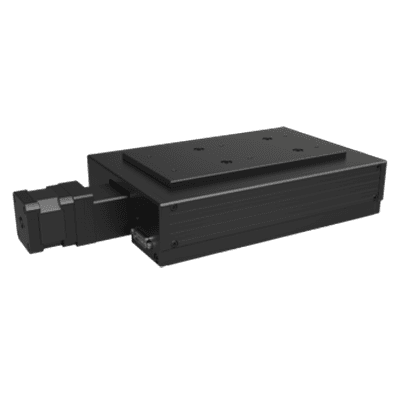

Lifting Stages
Z vertical stages, Travel up to 25 mm, Rep up to 0.7 µm, Load up to 45 kg, Speed up to 10 mm/s
Cleanroom & Vacuum
Stages and XYZ-R+ combinations | UHV, EUV, ISO 2–6 | complex systems, e.g. hard X-ray radiation, 1 Tesla, …
